China Made Fully Automatic High-Accuracy Carton Packing line for Beverage and Apparel Packaging

Name: China Made Fully Automatic HighAccuracy Carton Packing line for Beverage and Apparel Packaging
Brand: HIPAC
Price: 5000 USD

Quality China Made Fully Automatic High-Accuracy Carton Packing line for Beverage and Apparel Packaging for sale

Place of Origin : Sichuan, China

Brand Name : HIPAC

MOQ : 1 unit

Price : $5000-30,000 / unit

Model Number : PACKING LINE

Certification : CE,SGS

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 50 SETS

Delivery Time : 90days

Packaging Details : wooden package

application : Apparel, Food, Beverage, Other

packaging type : Bottles, Cans, Cartons, Stand-up Pouch, Bags, Pouch, Case, Film

packaging material : Wood, Plastic, Glass, Paper Products

automatic grade : Automatic

driven type : Electric

Voltage : 380v/220v

dimension(l*w*h) : 1000*160*200cm

warranty : 1 Year

key selling points : High-Accuracy

machinery test report : Provided

video outgoing-inspection : Provided

core components : Bearing, Motor, PLC, Pump, Gear, Pressure Vessel

Weight (KG) : 2000

Contact Now

Fully Automatic Carton Packing Machine

Complete beverage, apparel, and box seal packaging line with PLC pouch filling functionality for industrial automation.

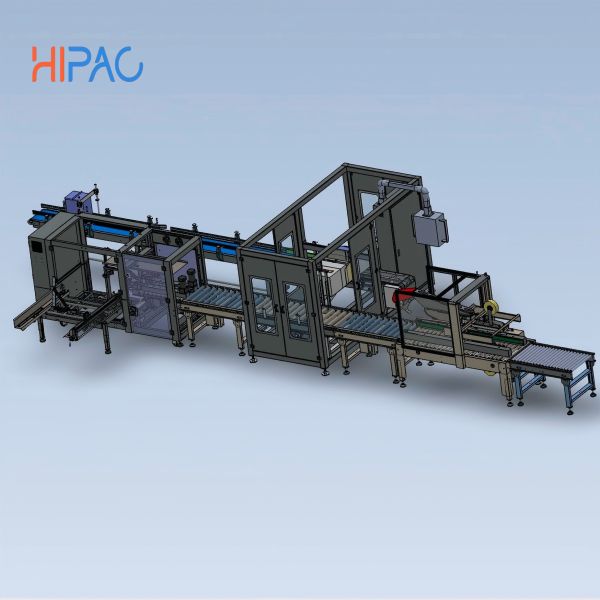

Packaging Line Overview

China Made Fully Automatic High-Accuracy Carton Packing line for Beverage and Apparel Packaging

This comprehensive packaging line integrates an automatic carton erector, carton filling robot, carton sealer, and customized material

handling conveyor system. Engineered for high-speed operation with exceptional stability, low power consumption across all axes,

and simplified equipment structure with specialized software integration. Ideal for furniture, food and beverage, 3C electronics, and various

industrial sectors requiring high-speed, high-precision palletizing, picking, packaging, handling, and loading/unloading operations.

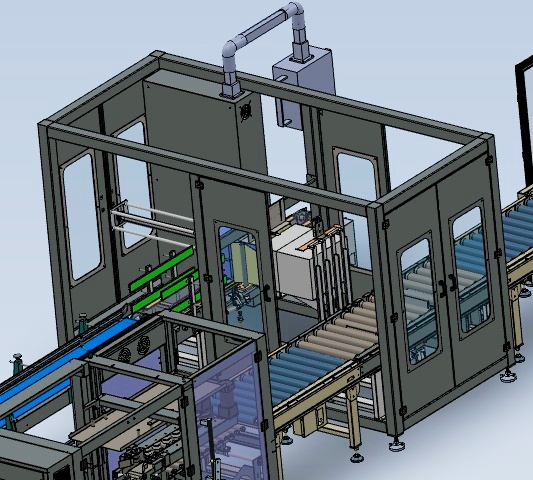

Carton Filler

Automated case packing system designed to pick multiple products and precisely place them into cartons. Utilizes pneumatic or mechanical gripper heads to lift grouped items from conveyor lines and accurately load them into upright cases. Features stable, synchronized motion control perfect for high-speed packaging applications in beverages, cosmetics, household chemicals, and food industries. Equipped with PLC control system and intuitive touchscreen interface for easy parameter configuration and rapid format changeovers. Built with robust frame construction and modular design for long-term operational stability and simplified maintenance.

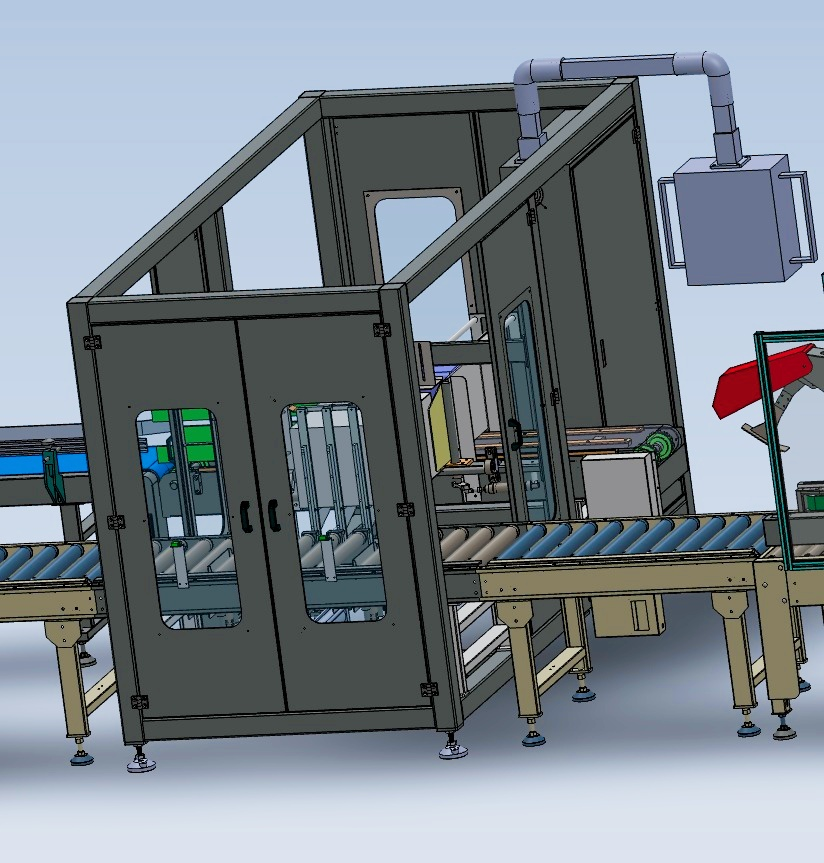

Carton Erector

Advanced carton opening system that completes the entire packing process including carton suction, opening, forming, folding, and sealing in one continuous operation. Accommodates various carton sizes with automatic bottom opening and sealing capabilities. Features automatic opening, bottom cover folding, and bottom belt sealing functions. Operates via PLC + screen control system for enhanced operational convenience and efficiency.

Carton Sealer

Versatile sealing system with adjustable upper and lower motion sealing belts adaptable to various carton dimensions. Automatically folds top covers without manual intervention and seamlessly integrates with automatic assembly lines. Worktable height is fully adjustable to meet specific operational requirements.

Product Gallery

Technical Specifications

Model	Carton filling machine
Power supply	110V, 220-240V/50-60HZ
Speed	Depends on the product (bottle, bag, can)
Applicable Products	Bottle/case/bag/can
Power	6.0KVA
Air pressure	0.5MPa

Model	Carton erector
Power supply	110V, 220-240V/50-60HZ
Speed	6-10 Cartons/min
Carton Size	L220-530mm/W150-400mm H120-350mm, H+1/2W < 550mm
Width of Tape	48mm, 50mm, 60mm
Overlap size	10-50mm
Height of working table	650mm
Air Source	0.4-0.8 MPa, > 500L/min.

Model	Carton sealer
Conveying speed	16m/min
Max. Packager Size	L500W500H500mm
Min. Packager Size	L220W120H120mm
Power Supply	110V,220-240V/50-60Hz
Belt driven	Side belt

Manufacturer Profile

HIPAC Chengdu Bropak Machinery Equipment Co., LTD specializes in sales of carton erectors, automatic carton sealers, strapping machines, wrapping machines, shrink packaging machines, vacuum machines, and comprehensive downstream packaging automation technology solutions planning and implementation.

Industry Presence

Quality Certifications

Packaging & Shipping

Frequently Asked Questions

How can I get the price?
- We typically provide quotes within 24 hours after receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly via email or other communication channels.
Can I purchase samples before placing orders?
- Yes, sample orders are available. Please contact us for details.
What is your lead time?
- Lead times vary based on order quantity and seasonal demand. Typically, we ship within 7-15 days for small quantities and approximately 30 days for larger orders.
What shipping methods are available?
- We ship via sea freight, air freight, or express carriers (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm shipping method with us before placing orders.
How do you maintain long-term business relationships?
- We ensure consistent quality and competitive pricing to deliver customer value. We treat every client as a partner, building genuine business relationships and friendships regardless of location.
